Central Air Conditioning
SpacePak-Preserves Architectural Integrity is the original, high-velocity cooling (and heating) solution for older homes that are not equipped for central air (heated with hot water, steam or radiant electric heat) and new homes featuring hydronic heating systems, including radiant floor heating. SpacePak’s successful track record includes thousands of residential installations. The system opens up opportunities for homeowners with previously limited air conditioning and heating options.
Ease of installation and quiet, efficient operation make SpacePak a good option for quality-conscious homeowners, building owners and contractors.

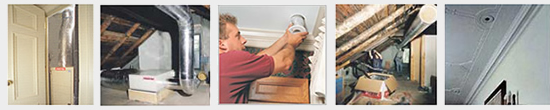

Because of SpacePak's unique 2" mini duct system, remodeling is kept to a minimum, simplifying the installation and reducing installation cost. SpacePak seems to have had the installer in mind when they designed this system. Blower units are small enough to fit in attics, basements, crawl spaces and closets.
High velocity air is distributed through the flexible, pre-insulated 2" diameter ductwork that can weave through wall structures and around obstructions. No large, cumbersome ductwork is required, saving installation time and reducing installation costs - all while maintaining architectural integrity.
-
SpacePak High Velocity
SpacePak High Velocity Mini Duct Systems may also be installed in a wide variety of commercial and institutional buildings, libraries, municipal buildings, museums, apartment buildings, condos and multi-family housing units. The same attractive installation and performance benefits that make SpacePak ideal for the residential market give contractors and building owners a cost-effective cooling solution in commercial applications.
SpacePak is ultra quiet and works through the principle of aspiration, unique to air conditioning systems. Air in the duct is under 5 to 6 times higher pressure than conventional systems. Air exiting the duct expands and creates eddy currents that blend the conditioned air, providing uniform, draft-free temperatures from floor to ceiling and room to room.
And because SpacePak removes up to 30% more moisture, homeowners are kept cool and comfortable at higher, more energy efficient thermostat settings
-
Easy to Install
The SpacePak High Velocity Air Conditioning System has been designed to reduce installation time and cost for the installer. Small diameter, flexible tubing weaves around construction obstacles and eliminates the need for bulky, cumbersome ductwork and major structural renovations.
Fittings simply snap securely into place with no tools required. The general installation guidelines listed below provide a quick reference to ensure successful installation and operation of the SpacePak system.
1. Outlets – The most important rule of thumb when installing a SpacePak Mini Duct System is installing the proper number of outlets. Six (6) to Seven (7) outlets per ton are recommended for optimal 35-40 CFM airflow from each outlet under normal conditions to maximize aspiration.
2. Outlet Placement – SpacePak outlets should be placed in the room where they will create the least disturbance (floors, ceilings, walls) and not infringe upon inhabitants. Traffic patterns, drapes and bed placement are all factors to consider.
3. Supply Duct – Ideally, all runs should be as equal in length as possible. Keep the 2" mini duct lengths between 9 ft. and 30 ft. for best performance. The longer the duct run, the lower the outlet capacity.
4. Main Trunk/Plenum – Maximize use of the main trunk-line to minimize the lengths of 2" ducts. This allows for easier installation and a better performing, balanced system if the 2" duct line lengths are minimized.
5. 60/40 Rule – Always try to use a full flow trunk-line “T” in larger, 4-5 ton SpacePak systems. Never exceed a 60/40 split of outlets off the main trunk-line in order to maintain evenly distributed airflow. A perfect 50/50 split is best.
6. Locating Take-Offs – Distribute takeoffs as evenly as possible along the main trunk-line – no closer than 6" away from one another. This will assure better, balanced airflow.
7. Sound Attenuators – The last 3 ft. of every run should use a fully-fabricated SpacePak sound attenuator to reduce outlet air sound. Return Air Duct – Minimize potential fan noise and maximize performance of this acoustically lined duct by incorporating a 90-degree bend between the air handler and return grille.
8. Kwik-Connect – SpacePak Air Conditioning Systems feature unique ‘Kwik-Connect’ adapters to save time and money during installation. Simply position the slots and turn to the lock position to provide a secure, air-tight seal for flexible duct connections.
For more information and details concerning installation of a SpacePak Mini Duct System, view an installation guide.
Spacepak High Velocity Air Conditioning System
Let’s face it – If you live in the United States, chances are central air conditioning is a necessity. But what if you have a home where traditional ductwork is difficult or even impossible to install? And what about the aesthetics of exposed ducts ruining an otherwise beautiful room. Sounds like a strong case for an alternative to traditional bulky ductwork! The Spacepak high velocity system uses 2″ mini ducts to distribute air.
- Spacepak can be used to centrally cool structures where wet heat (steam or hot water), electric heat, or inadequately sized conventional warm air systems are installed, for cooling or where the installation of sheet metal ducts would be expensive or difficult.
- Distribution of air is by means of flexible, pre-insulated 2-inch mini air ducts (inside diameter) which slide through wall structures and around obstructions.
- The Spacepak high velocity system utilizes 1/2 the volume of air used by conventional systems and delivers it draft-free.
- Spacepak has a deeper coil that can remove up to 30% more moisture from the air for greater comfort and energy efficiency.
- Each mini duct run has special sound attenuation materials that absorb airborne and regenerated noise to provide a quiet air conditioning system.

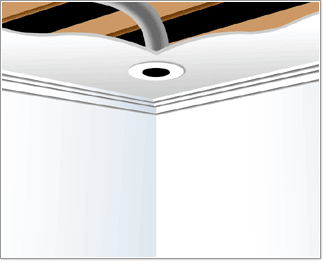

- Spacepak is the least intrusive installation of any system available. The only visible part inside the home is a small, white, disc-like terminator (one-seventh as large as the usual 8″ ceiling diffuser). Blends with any decor. Conditioned air is delivered into the room through a small 2-inch opening.
- Virtually eliminates major structural work, costly remodeling and redecorating and disruption of household routine.
- Standard Spacepak air conditioning and heating systems available in 2, 2.5, 3, 3.5, 4, and 5 ton capacities.
Once you’ve determined if Spacepak is right for you, you’ll need a complete materials list to determine your final price for the equipment and ducting. Fortunately, unlike traditional systems the materials required, including the number of outlets, are fairly standardized and are based mainly on the size, or tonnage of the system. Spacepak requires 6-7 outlets per ton of cooling. So if your home requires 3 tons, you’ll need 18-21 outlets. This enables you to buy a complete package without having to assemble a materials list from scratch.
